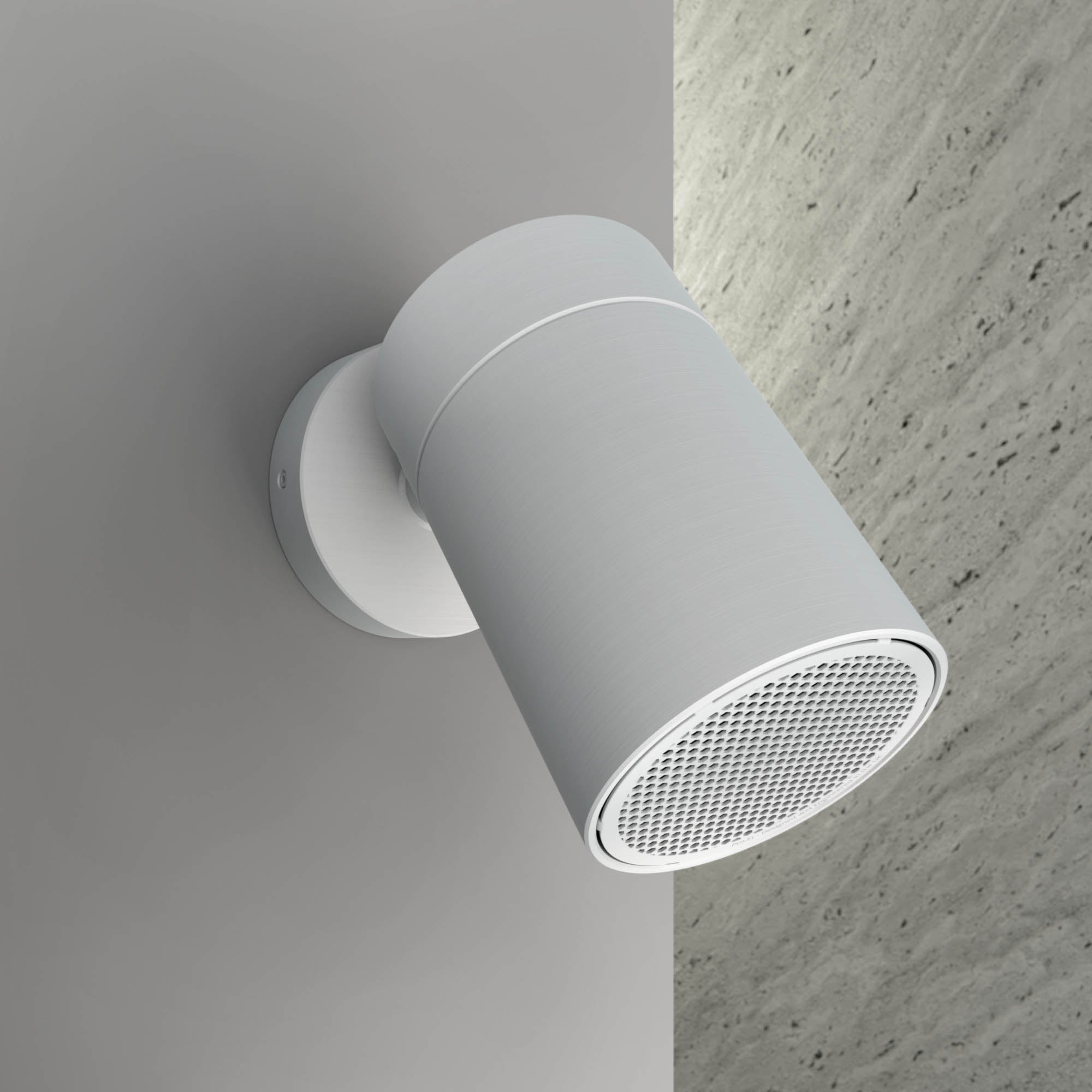

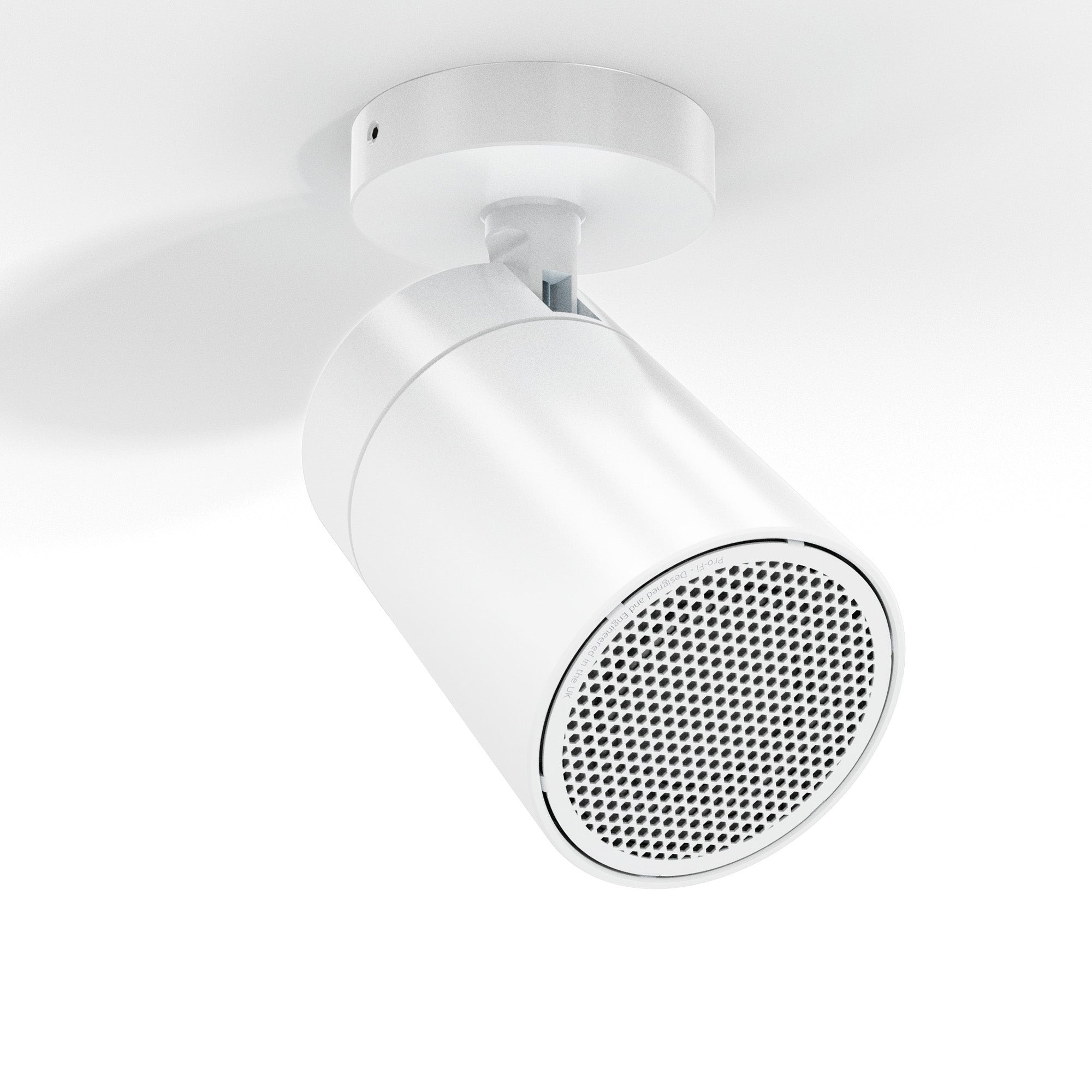

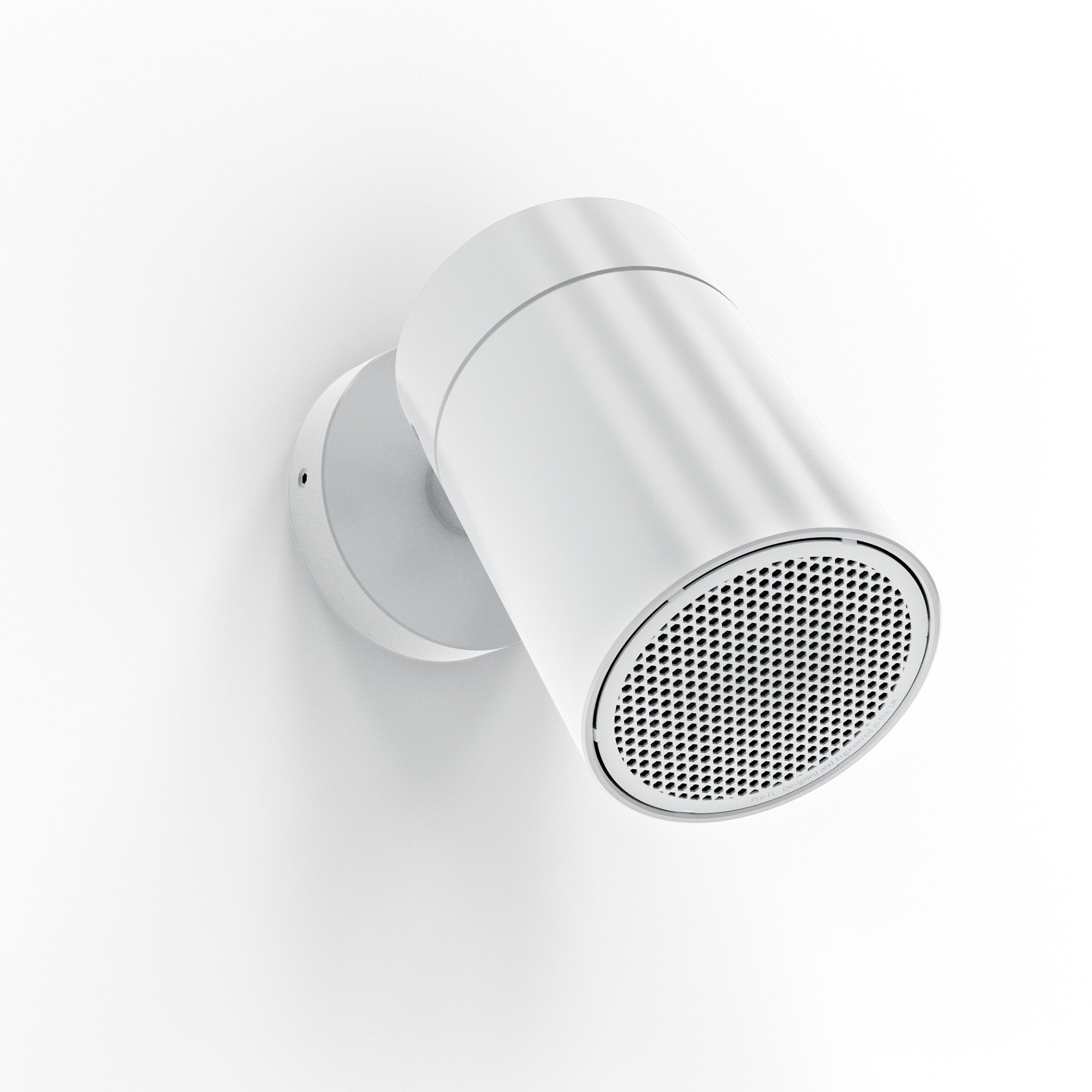

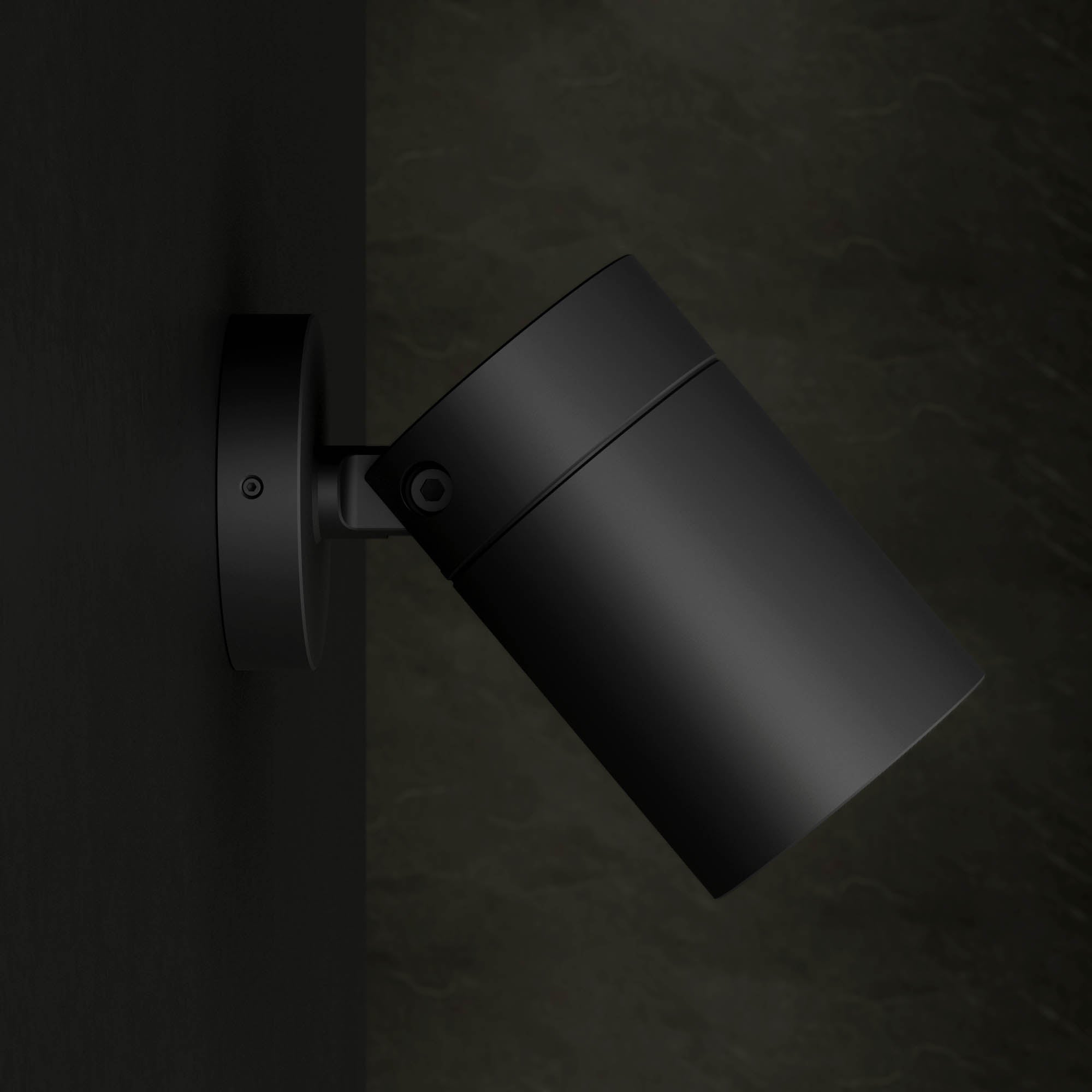

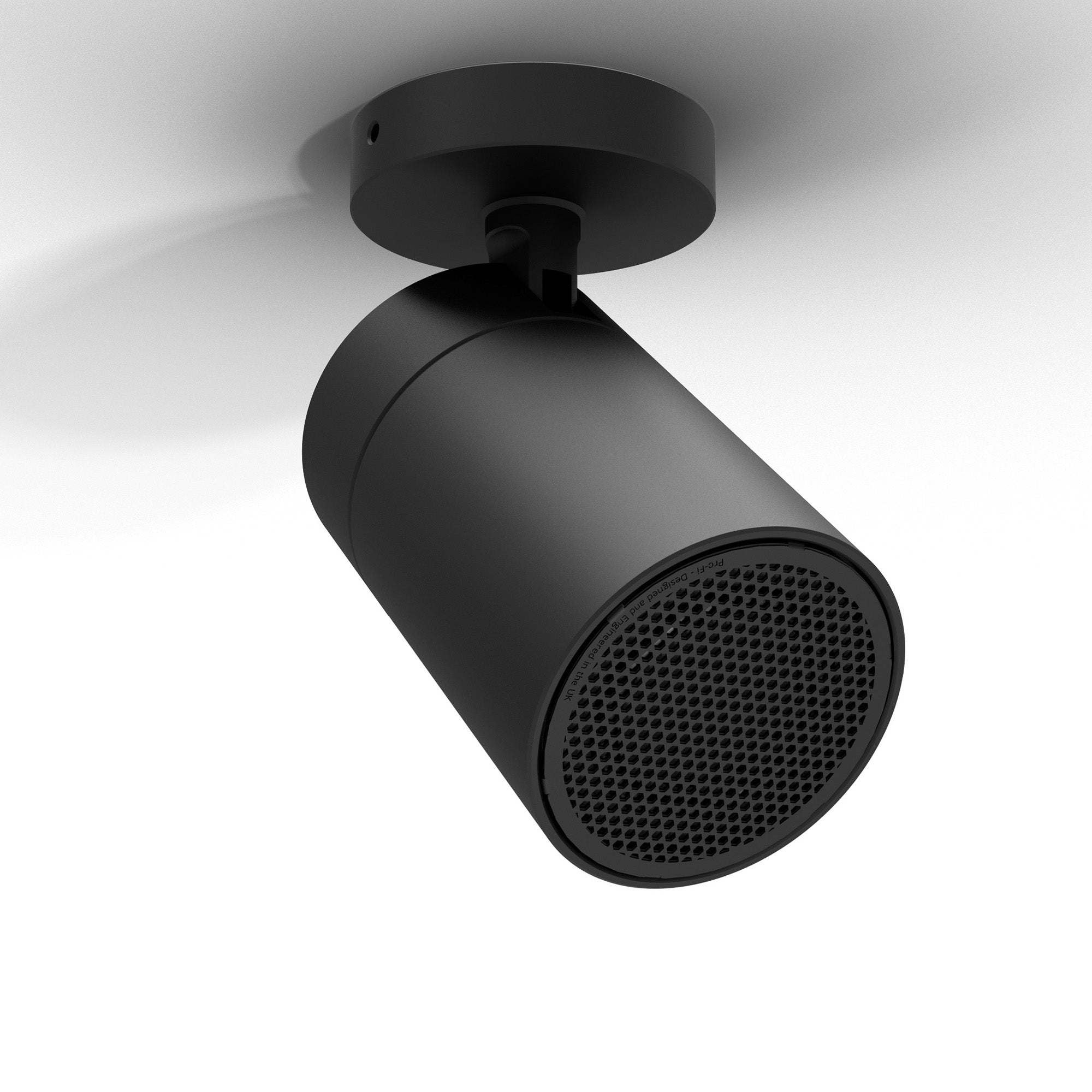

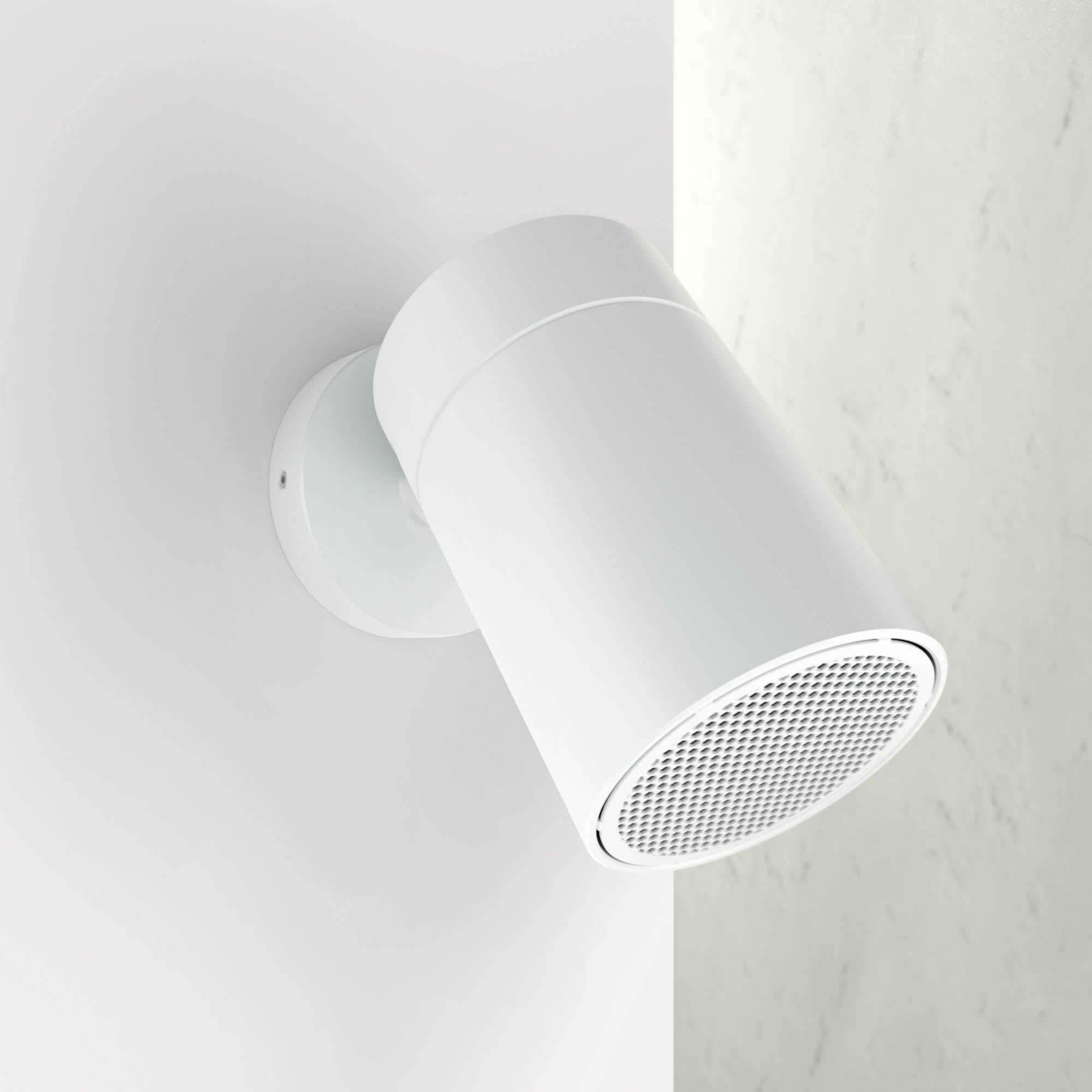

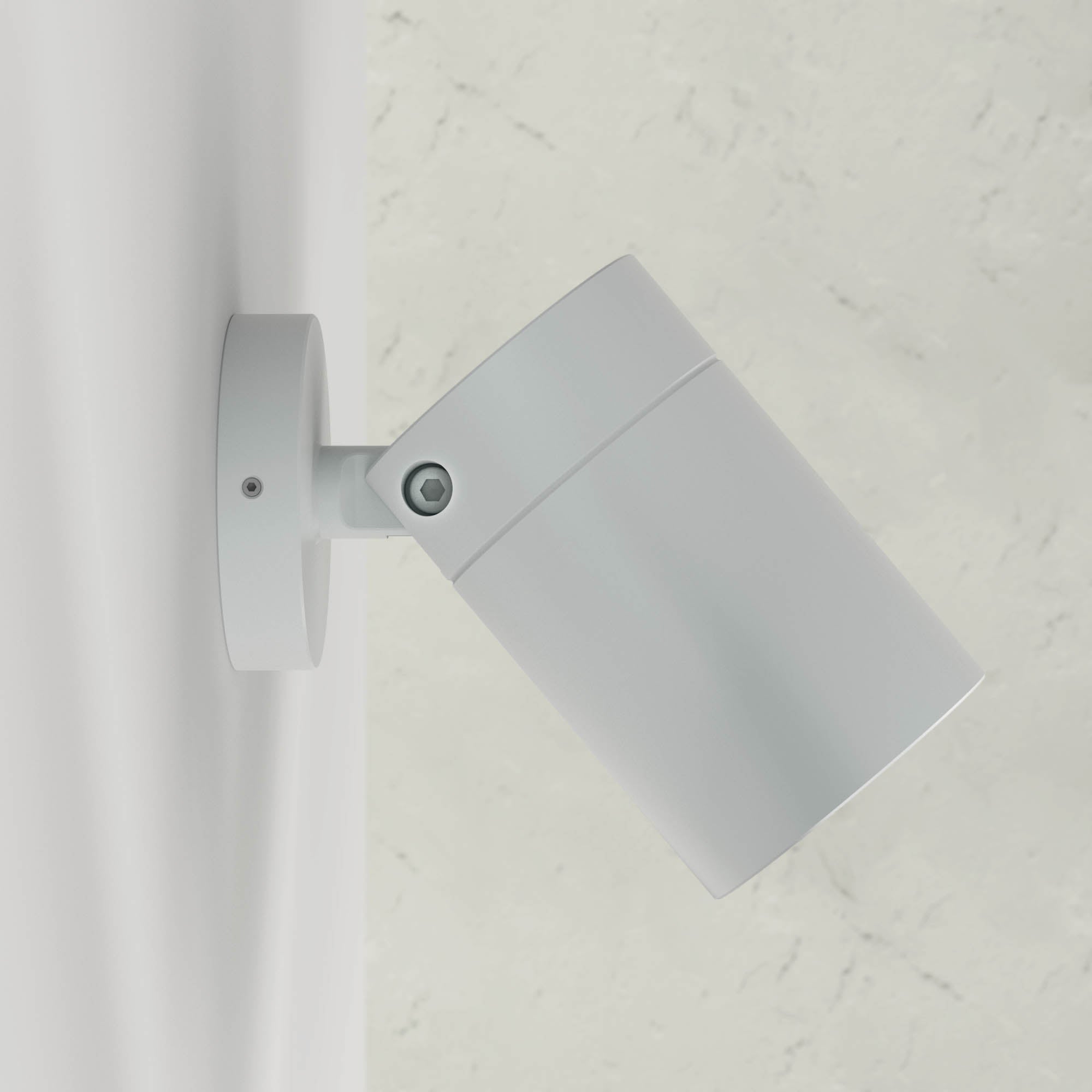

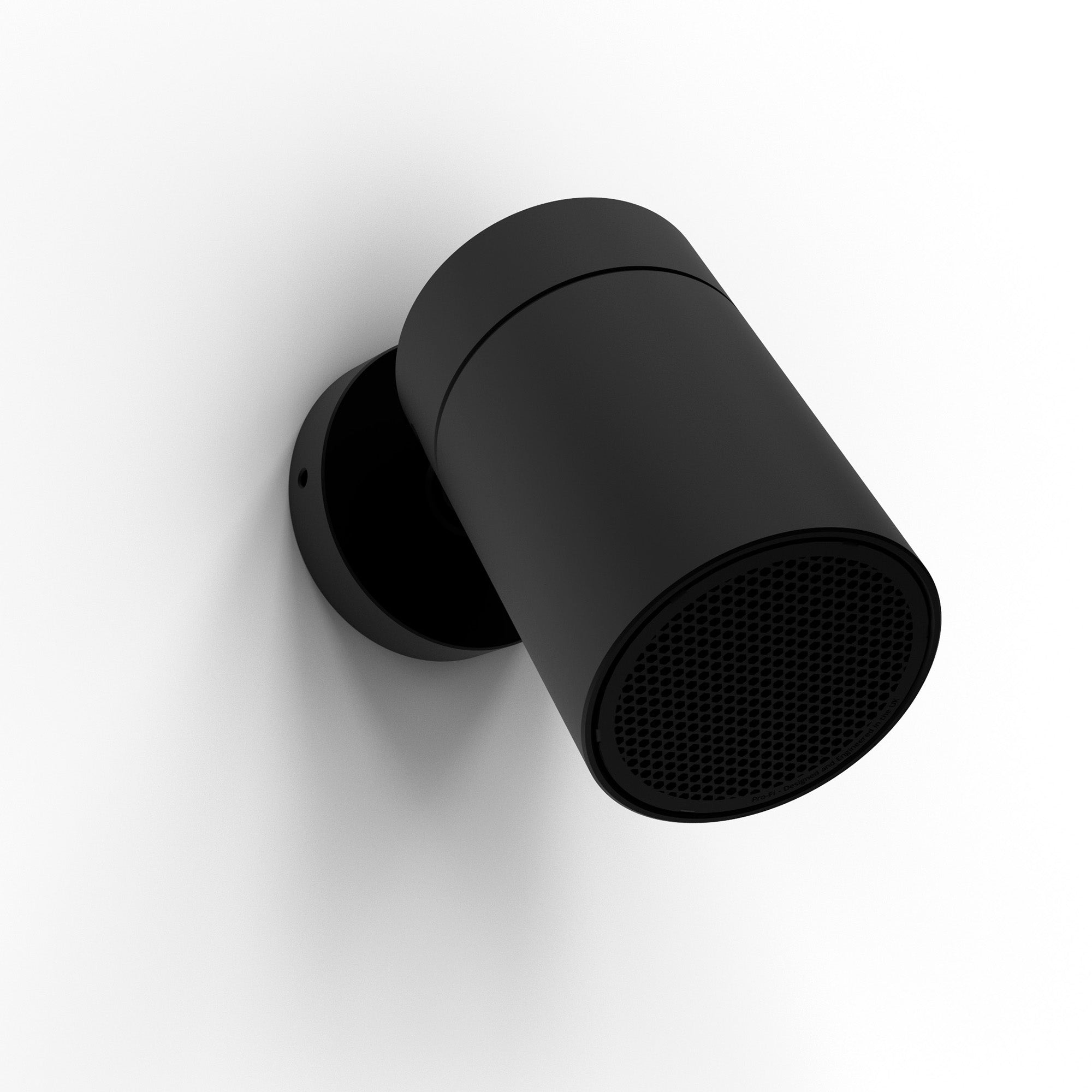

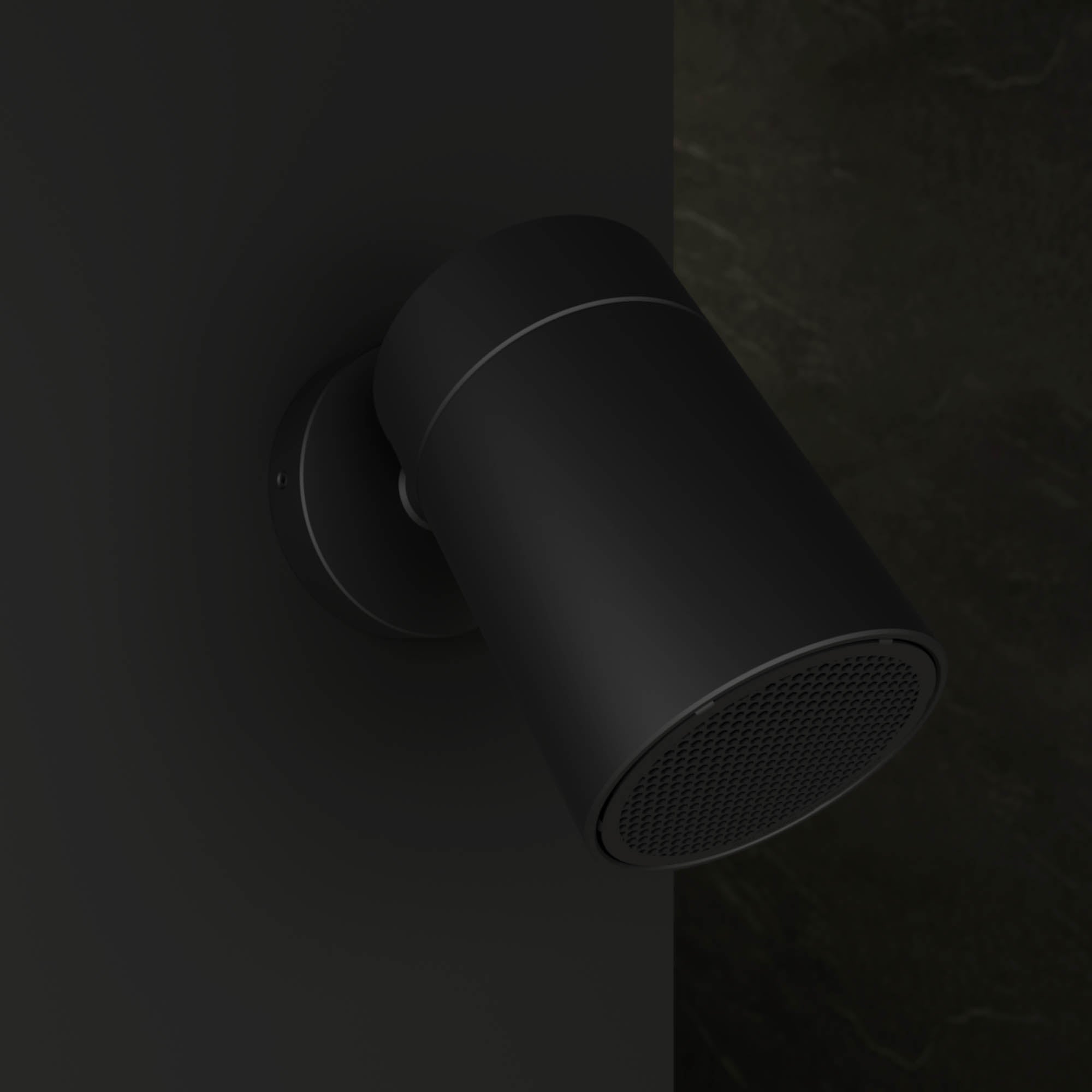

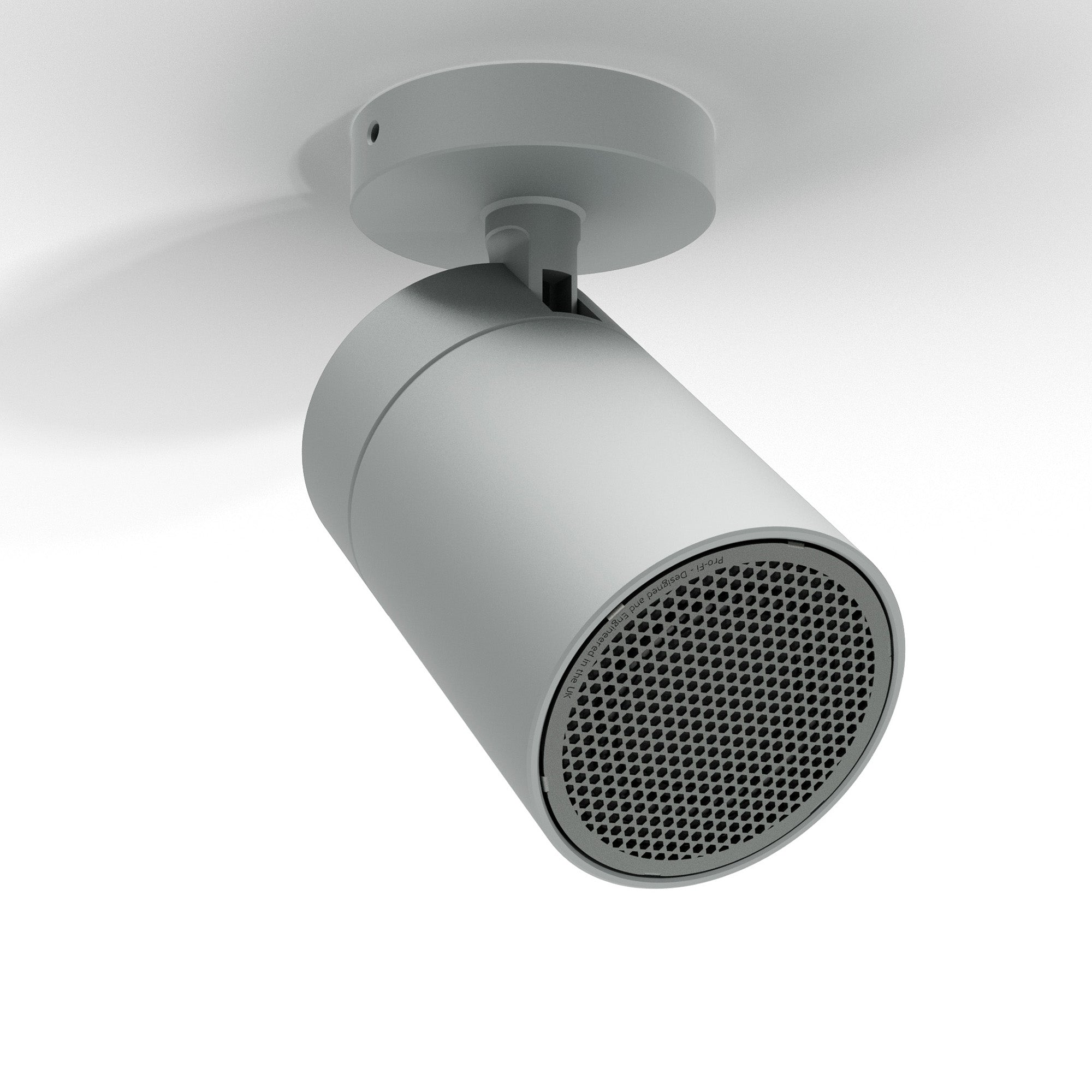

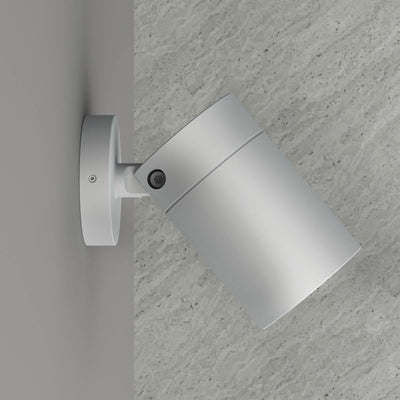

The Pro-Fi Dot 1 is a point-source loudspeaker designed for Spatial Audio applications. It features a 35mm Balanced Mode Radiator full-range driver with a robust neodymium motor structure. The BMR technology delivers high excursion for enhanced low-frequency performance, coupled with complete hemispherical dispersion for consistent high-frequency coverage.

The Dot-1 delivers a short-term peak SPL of 95dB and long-term RMS SPL of 90dB. The frequency response (+/-6 dB) is 150-30kHz and managed by Pro-Fi DSP.

All Pro-Fi loudspeakers have been exhaustively designed, tested, and custom-manufactured in the UK

Colour
Colour: White

Pairs well with

Ships in 2 weeks.

5 -Year Warranty*

Designed and Engineered in the UK

Product details

Product Datasheet

Technical Specification

The technical specification for the Dot 1 is:

Type: Point Source

Transucers: Driver - 35mm Balanced Mode Radiator with Neodymium Motor

Frequency Response: 150 Hz – 30 kHz (-6 dB)

Max SPL: 95 dB (Peak) / 90 dB (RMS)

Rated Power: 30 W (Peak / 10 W (RMS)

Coverage: V. 180° | H. 180°

Connectors: 2PIN euroblock connector (included)

Nominal Impedance: 4 Ω

Weight: 300g

Amplifier Channels Required: POE Amp - 1 Channel / CloudAmp - 1 Channel

Applications

The Pro-Fi Dot delivers a wide and uniform audio coverage in a miniature speaker format, perfect for high-level installation applications in:

- Residential Distributed Audio
- Residential Media Rooms
- Health and Wellness
- Restaurants and Cafes
- Retail
- Hotels and Bars
- Museums and Galleries
- Luxury Marine

Warranty

* Standard warranty is 2 years which is extended to 5 years upon registration of your Dot 1.
